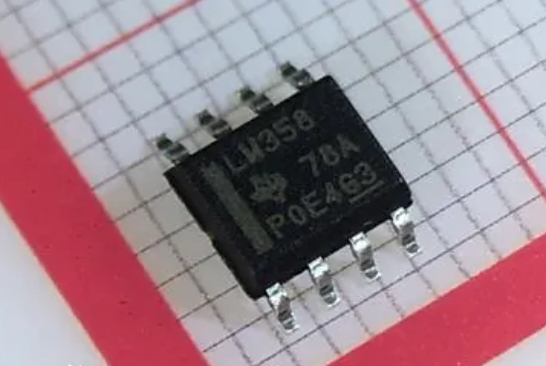

Model：LM358DR‌

Manufacturer：TI

Stocks：850

Describe：1. Product Brand Brand: Texas Instruments (TI, Texas Instruments) Series: LM358 Series (General-purpose Dual Channel Operational Amplifier) 2. Core Function Basic Characteristics: Dual-channel operational amplifier, supports single/double power supply (3V - 32V or ±1.5V - ±16V). Low static current (300μA/channel, typical value), suitable for low-power applications. Common-mode input voltage range extends to ground, supports near-ground direct sensing. Performance Parameters: Gain Bandwidth Product (GBP): 700kHz. Input Offset Voltage: Maximum 3mV (Version B) or 2mV (Version BA)‌. Output Current: 30mA (typical value)‌. Enhanced Features: Built-in EMI and RF filters, strong anti-interference ability. High ESD protection (2kV HBM)‌. 3. Typical Applications Signal Processing: Weak signal amplification (such as sensor signals), filtering (low-pass/high-pass/band-pass)‌. Comparator: Voltage comparison, threshold detection‌. Current Detection: Differential amplification circuit (such as high-end/low-end current sampling)‌. Industrial and Consumer Electronics: Power management, portable devices, medical instruments‌. 4. Packaging and Pins Package Type: 8-SOIC (Surface Mount)‌. Operating Temperature: 0°C - +70°C‌.
